מגבר ל- HDMI

0  חוות דעת ( חוות דעת גולשים)
מגבר ל- HDMI
עד11%הנחה
מגבר לכבלים של hdmi עד 35 מטר. המוצר מגיע עם כניסת hdmi נקבה בשני הכניסות . אפשר לשרשר באמצעותו כבל קיים לעוד כבל נוסף ללא נפילות בתצוגה.


  • מקט: hdmmag
רגיל רגיל ₪450

מבצע   ₪ 400 ILS 17/7/2027 In stock

קנה עכשיו הוסף לסל

מדוע לקנות אצלנו?

שירות לקוחות מקצועי, מחירים אטרקטיביים וזמני אספקה מהירים!

  • זמן אספקה: עד7ימי עסקים

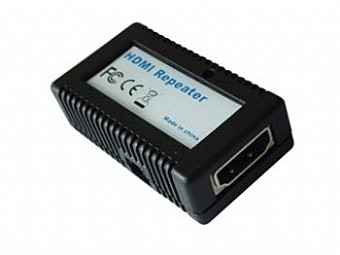

HDMI Extender HDMI Repeater

620360 PN
INTRODUCTION
The HDMI Repeater extends the length of any HDMI cable by regenerating the HDMI signal before it outputs to the HDMI monitor or projector.
The HDMI Repeater will clean out the digital noise (sparkles) in your picture.
The input of the HDMI repeater is connected with a long HDMI (male to male) cable from the HDMI device like DVD player or Satellite set top box with a HDMI output port.The HDMI repeater output is connected to a second HDMI (male to male) cable to go from the output to any HDMI display or projector with a HDMI connector.
The box is placed near the display to remove any noise that has been generated by a long HDMI cable. The HDMI Repeater unit can be daisy chain two cables (up to four cables with four HDMI Repeater unit) together and create a longer HDMI extension.

FEATURES
* Connects HDMI DVD or devices with HDMI outputs to HDMI compatible displays or projectors.
* Allows to extend the HDMI cable distance, between the HDMI player and HDMI TV set,
  to 40Meter (35 Meter HDMI cable+ 5 Meter HDMI cable).
* With daisy chain 4 units of the HDMI Repeater, will allows to extend the HDMI cable
  distance to 145Meter (35Meter x 4 + 5 Meter).
* Maintains highest HDMI single link video resolution 1080
* Supports DDWG standard for HDMI compliant monitors
* Supports full HDMI audio and video
* HDCP Compliant
* Installs in minutes

SPECIFICATIONS:
-HDMI Amplifier Bandwidth: 1.65 GHz
-Actual Bandwidth: 1.6 GHz
-Input Video Signal: 1.2 Volts p-p
-Input DDC Signal: 5 Volts p-p (TTL)
-HDMI Input/Output Connector: Type A 19 pin
-Power Consumption: 15 Watts (max.)
-Power Supply: External 5V DC
-Dimensions: 5CM x 2.8CM x 1.8CM
-Shipping Weight

PACKAGE CONTENTS
-HDMI Repeater
-User's Manual

CONNECT AND OPERATE
1) Connect the HDMI device output into HRP0101 input and connect the
 HRP0101 output to the HDMI display unit. The HDMI device is put close
 to the HDMI display unit (Input cables are optional)
*Please refer to connection diagram section.
2) Insert the DC side of 5v power supply if more than one HRP0101 unit is using.
3) Turn on the power of those HDMI devices.

Attention: Insert / Extract cable gently.

SPECIFICATIONS

Signal Inputs/Output



Input Video Signal

5 Volts p-p (TTL)

Maximum Single Link Range

1920X1200, 1080P

Output Video

HDMI1.2a+HDCP1.0/1.1

HDMI Input/Output Connector

Type A 19 pin

Video format supported



VGA

640x480,800x600,1024x768,1920x1200

DTV/HDTV

480i/576i/480p/576p/720p/1080i/1080P

Digital Signal I/O



HDMI Compliance

HDMI 1.2a

Operating Frequency



Video Amplifier Bandwidth

1.65Gbps/165MHz

Resolutions(HDTV)



Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Mechanical



Size(H-W-D)

27mmW x 49mmH x 15mmD

Weight(Net)

0.017KGs

Warranty



Limited Warranty

1 Year Parts and Labor

Environmental



Operating Temperature

0 ℃ to +70℃

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10℃ to +80℃

Storage Humidity

5% to 90 % RH (no condensation)

Power Requirement



External Power Supply

5V  DC@2A(optional)

Regulatory Approvals



Converter Unit

FCC,CE,UL

Power Supply

UL,CE,FCC

Accessories Adapter



AC Power Adapter

US standard, UK standard and so on

User Manual
